698-960MHz 11dBi Directional Panel Antenna LTE,CDMA,GSM antenna

Product Categories

Shenzhen Ameison Communication Equipment Co.,Ltd.

Contact Now

Name: 698960MHz 11dBi Directional Panel Antenna LTECDMAGSM antenna
Brand: AMEISON
Price: 1 USD

Place of Origin : Shenzhen, China.

Brand Name : AMEISON

Model Number : AMXP-7090V-D11L90

Certification : RoHS and REACH Compliant by Exemption

Frequency range（MHz） : 698～960

Polarization : Vertical

Gain（dBi） : 11

Half-power beam width（°） : H:90 V:30

VSWR : ≤1.5

Maximum input power（W） : 400

Lightning protection : DC Ground

Input connector type : N Female

Price : FOB SHENZHEN

Packaging Details : bubble PP bag or EPE/inner box/master carton(safe export packaging)

Delivery Time : 10 days

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 80,000 Pieces per Month

MOQ : 500 pcs per item

Contact Now

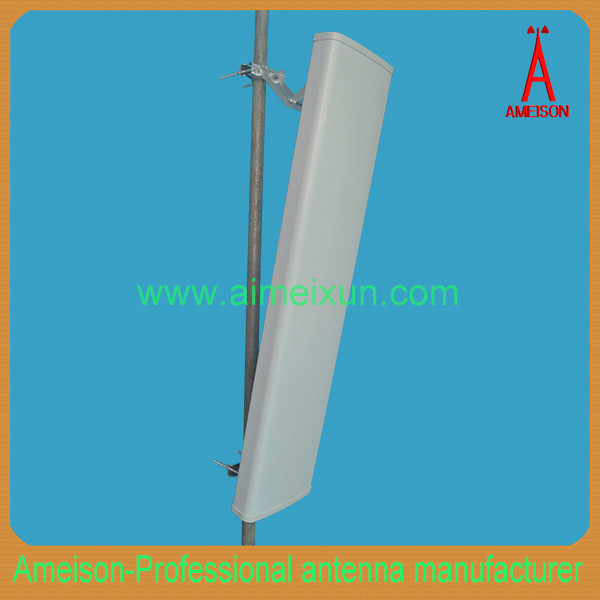

698-960MHz Directional Panel Antenna

AMXP-7090V-D11L90

Feature:

High gain

Full day working

Optimized dimension

Polarization:Vertical or horizontal

Application:

LTE,CDMA,GSM system

Wireless communication and data transmission system

AMXP-7090V-D11L90 Electrical Specifications
Frequency range(MHz)	698～960
Polarization	Vertical
Gain(dBi)	11
Half-power beam width(°)	H:90 V:30
Front-to-back ratio(dB)	≥23
Input Impedance(Ω)	50
VSWR	≤1.5
Sidelobe suppression for first sidelobe above horizon	15 dB
Maximum input power(W)	400
Lightning protection	DC Ground
Mechanical Specifications
Input connector type	N Female
Dimensions-mm (Height/Width/Depth)	720280125
Packing size(mm)	770320210
Antenna weight (kg)	6.2
Radome material	UPVC
Radome color	Gray
Mechanical tilt(°)	0～10
Operating temperature(°c)	-40～60
Rated Wind Velocity(m/s)	60
Mounting hardware(mm)	￠35～￠90
